BNC2Fibre

Designed to trnasfer electrical signal to the pulse opto signal. Input via BNC interface transfer to a opto interface in a very compact enclosure. Maximum Pulse Repetition Frquency (PRF) can reach 1 MHz . the minimum pulse wide can reach 100ns.

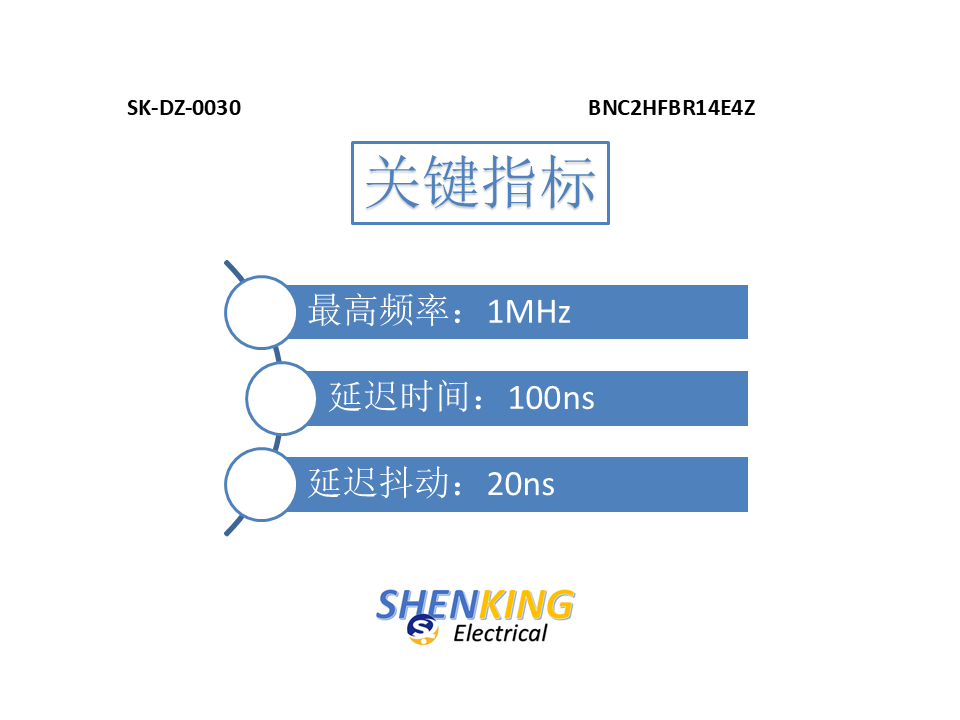

Max PRF: 1 MHz
Delay time: 100ns
Jitter: 20ns

Fibre2BNC

Size and Weight.

Weight approx. 250g (Gel sealed)
